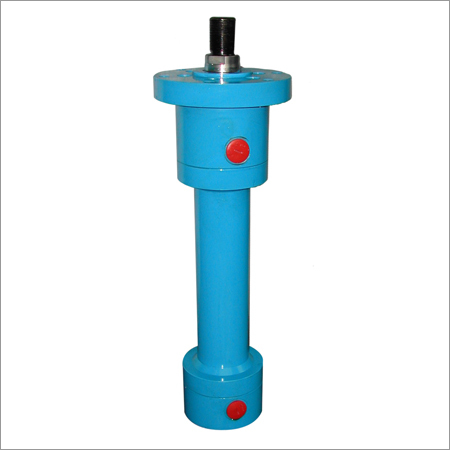

Flanged Mill Duty Cylinder
Made using Honed/Skived or Roller Burnished seamless tubes, we manufacture cylinders as per the customer's specification. Large diameter cylinders are manufactured out of steel stock and then honed to desired (H8) tolerance. Piston rods are made from high tensile hard chrome plated and ground steel bars. Seals of Busak+ Shamban-Germany, Hallite-UK, Merkel-UK & Eston, Italy are used.
Broad Specifications:
- Standard bore size: 63 to 400 mm.
- Working pressure: up to 210 Kgf/sq. cm.
- Maximum Pressure: 320 kgf/sq.cm
Types of cylinders manufactured:
-
Tie Rod design: Double acting, single acting, through rod, tandem.
-
Mobile design: Double acting, single acting.
-
Flanged construction / Mill duty: Double acting, single acting, through rod.
-
Press cylinder: Double acting, single acting, through rod.
Mounting types: Front flange, rear flange, foot, front screwed hole, rear clevis with & without universal bearing, extended tie rod, mid-body trunion, front trunion & rear trunion.
Rod ends: Male thread, female thread, grooved, front clevis with & without spherical bearing.
|
